Label both ends of every cable with the same identifier, on a flag label that wraps the cable and sticks to itself, and write the identifier down somewhere before you start. That is the whole method. The reason people end up unplugging things to find out what they do is almost always one of three failures: only one end was labelled, the two ends were named differently, or the label was a strip of paper that fell off a year ago. Here is how to do it properly, whether that is an HDB AV cabinet with nine identical black cables or a comms rack with 48 ports — and where a printed sleeve beats a stick-on flag entirely.
Use a flag label, not a sticker wrapped round the cable

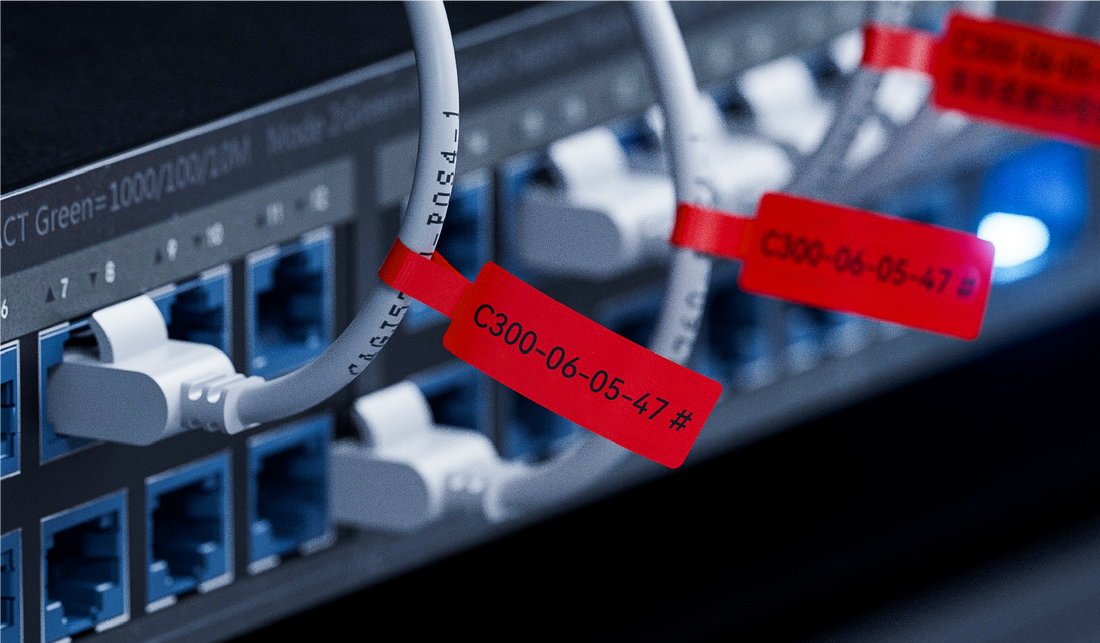

A sticker wrapped round a cable has to be read by rotating it, and it unpeels as the adhesive follows the curve. A flag label — sometimes called a P-type — has a sticky tail that wraps the cable and a printed paddle that sticks back onto itself and sits flat, so the text faces you.
Our cable tag range is made for this. The 2-inch cable tags come in single row and double row: the double row prints the same identifier on both halves of the paddle, so it reads from either side of the cable and you never have to twist it. There are narrow versions for the D series, a 12.5×109mm format for the D101, and PET flags for the N1.
Place the flag about 50mm back from the connector. Close enough to be obviously part of that cable, far enough that it does not foul the RJ45 latch when you unclip it. On fibre patch leads keep the label small and light, because bulk at the connector works against the bend radius.
For panel work, print the sleeve instead
A flag label is the right answer on a finished cable. On a control panel or a distribution board, where conductors are being terminated, the marker belongs on the wire — threaded on as a sleeve before the lug, or shrunk over the insulation. Nothing peels, nothing catches on a gland, and the ID survives being pulled through trunking.
That is what the NIIMBOT C1 tube printer does. It prints 300dpi thermal transfer onto PVC wire marker sleeves for 0.5–25mm² conductors and onto round heat shrink tube from 1mm to 8mm diameter, then cuts each segment — full-cut for loose markers, half-cut to leave them joined on the strip and in order. It runs up to 38 segments a minute at 20mm, prints two lines, and generates sequential IDs instead of making you type forty. Tube and ribbon are chosen to suit the job, so tell us the conductor size and we will point you at the right one.
So: sleeves and heat shrink for wiring work and anything inside a panel, flag labels for patch leads, AV cabinets, desks and equipment tails.
Name both ends the same thing, and decide the scheme first
The naming scheme matters more than the label. Work from the biggest thing to the smallest and stay consistent: room, rack, panel, port. The structured cabling standard most installers reference, ANSI/TIA-606, formalises exactly that hierarchy — something like TR101-PP02-P24 for telecom room 101, patch panel 2, port 24. At home the same logic shrinks to TV-ONT or ROUTER-LAN3.
Two rules save the most pain later: no spaces, and do not invent new abbreviations halfway through the job. Put the list in a spreadsheet as you go, then print the whole run in one sitting — the NIIMBOT app imports a spreadsheet and prints the rows as a batch, which is an app feature and works on every printer in the range, as our Excel batch printing guide shows. Fifty flags from a list takes minutes; fifty typed one at a time is an evening.
Colour-code by function
Colour does the work your eyes do before you read anything. The cable tags come in white, yellow, blue, red and green, so reserve one colour per function — red for mains and UPS, blue for network, yellow for AV, green for telephony, white for the rest. In a cable organisation project that single decision is what makes a cabinet readable from the doorway.
Paper or PET? It depends how long it has to last
For a home AV cabinet, an office desk or a POS counter, direct thermal cable tags are the right answer: cheap, instant, and if the setup changes you reprint. What they do not love is years of handling, sunlight or heat — the print greys, as explained in whether labels fade over time.
For a riser, a plant room, a workshop or anything outdoors, use thermal transfer: the N1 prints a ribbon onto PET film, which survives abrasion, water, oil and cleaning chemicals. A flag that gets tugged every time someone works in the rack needs that. The materials guide covers which stock holds up where.
Label the panel and the equipment too
Cables are half the job. Number the patch panel ports so they match the cable IDs, and label the equipment itself — switch, ONT, UPS, NVR — so a handover note makes sense to whoever comes next. For panel and asset plates with room for a barcode and text, the M3 takes labels up to 75mm wide — pair it with the C1 and one covers the plates while the other covers the conductors; the same PET range includes dedicated cable labels in white and yellow.
One last habit: wipe the cable before you stick anything to it. Dust is why labels fall off. Everything here ships from our Singapore warehouse with a 1-year local warranty.
